Aluminum

Aluminum Folding Glass Doors and Windows

Features

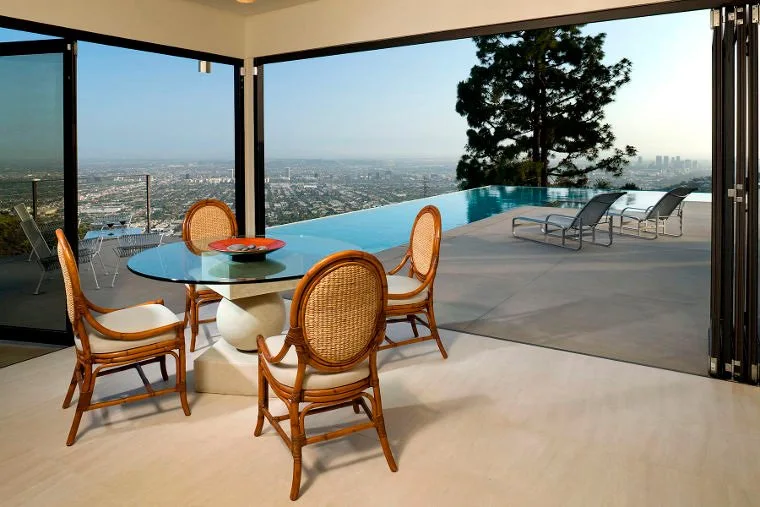

Lanai Doors™ top-hung aluminum folding door and window systems are a great alternative to traditional French doors, sliders, pocket doors and pass-thru windows in residential, hospitality and commercial applications. Our systems are installed from the Virgin Islands to the Hawaiian Islands; from The Hamptons to Costa Rica. Aluminum is a long-lasting low maintenance non-warping alternative to wood. Aluminum doors and windows give you more finishing alternatives with the retro look of clear anodized or the warmth of bronze anodized; and painted finish to match existing wood, clad or vinyl doors and windows. Aluminum doors and windows maximize your view when the system is locked down because of the narrow 3 inch wide styles and 3 ½ inch wide rails.

Quality; Flexibility; and Creativity

We use various southern California aluminum extruders to manufacture all of our aluminum bifolding system components. We design and maintain our own dies, which allow us to decide when and how we enhance and improve our folding system. As an example of our flexibility, in 2007, based on customer demand, Lanai Doors™ now offers a low-rise threshold. We use the highest quality 6063-T5 aluminum, commonly referred to as the architectural alloy, which has a high degree of resistance to corrosion.

Extremely Large Openings and Multiple Configurations

The maximum size aluminum door panel is 45" wide by 13' 1" tall, up to 250 pounds, and 1-¾" thick. A single system can be as large as 68 feet wide by 13 feet tall. In a 68 foot wide system, that would equate to nearly 60 feet of glass – what a view. Lanai Doors™ aluminum folding door and window systems can be configured to stack outside or inside your house. You also have the option of any combination of panels stacking either to the left or to the right, neither direction to exceed eight folding panels. These industry leading options allow you to Bring The Outdoors In in a big way.

Shipped Broken Down For On-Site Assembly

The frame and door panels are pre-drilled with hardware and weather stripping already attached. The frame is broken down into its four pieces (header, two jambs and threshold) and panels are shipped individually. Lanai Doors™ provides detailed installation guidelines and you are able to use your own experienced installers.

Lanai Doors™ is now Hurricane Certified. Please check out our Hurricane Door and Window page for more information.

Not Thermally Broken

Lanai Doors™ aluminum bifold door and window extruded aluminum systems are contiguous aluminum and are not thermally broken.

Customize

Lanai Doors™ folding glass walls can be customized to fit the needs of your project. Do you want 3 panels stacking to the left and a swing door to the right, or all of them to the right? Maybe you want a stationary side-lite with 5 folding panels, or a zero post corner unit? If you have an idea, let us know, and we will try to make it happen. The following is a list of some of the many customizations that we can do for you:

• Panel widths to 45” wide by 13’1” tall
• Over 150 different configurations (3 left-1 right, 8 right, Inswing, Outswing, etc.)
• Optional oversized bottom and top rails (7-3/16" and 10-13/16")
• Multiple threshold types from weather-tight to commercial to seamless
• Custom glass available, we will work with our suppliers to find the glass that you need for your project
• Simulated divided lites (SDLs) or muntins are also available
• Hinge hardware can be Stainless Steel or Black PVD
• Locking hardware is available in White, Satin Chrome, Brushed Chrome, or Dark Bronze
• Aluminum finishes can be custom anodized, and custom painted to match.
• Corner units designed without a post
• Stationary side lite integrated with the folding panels
• Curved / Radius systems
• Pass through windows
• Door and window combinations
• Accessibility control locking options

Performance

Lanai Doors™ Aluminum Folding Door & Window Systems :

Lanai Doors aluminum folding glass doors and windows have been laboratory tested in accordance with industry standards. Our aluminum systems have been tested for energy performance, forced entry, wind loads, water tightness, and air infiltration. All of our systems have passed the ASTM forced entry test. There are many variables that enter into testing for energy performance, wind loads, water tightness, and air infiltration; so we have organized most of the information into tables.

Lanai Doors™ is committed to Quality

ENERGY EFFICIENT

Our products have been NFRC tested and rated. One of our focuses is on providing the customer with the most energy efficient folding doors and windows.

THINKING GREEN

We are committed to a greener future. Looking to qualify a LEED project? Our products can help you achieve the LEED ratings for your next project.

Structural Integrity

Our focus has been on quality since day one. We design our products without compromise, and we follow through by testing to ensure our products to meet the strict testing standards for Air & Water Infiltration, Structural Design Pressures, and Forced Entry Requirements.

Technical

Profile drawings of our Aluminum Systems
